Layout & Composition Widgets

Most widgets show one thing: one chart, one number, one table. The widgets on this page do something different. They compose: a combo chart overlays several measures on one set of axes, a stat grid packs several KPIs into one block, a divider adds visual structure, and tabs group widgets so a single area can hold more than one view. Use them when a plain chart or KPI is not enough to tell the story.

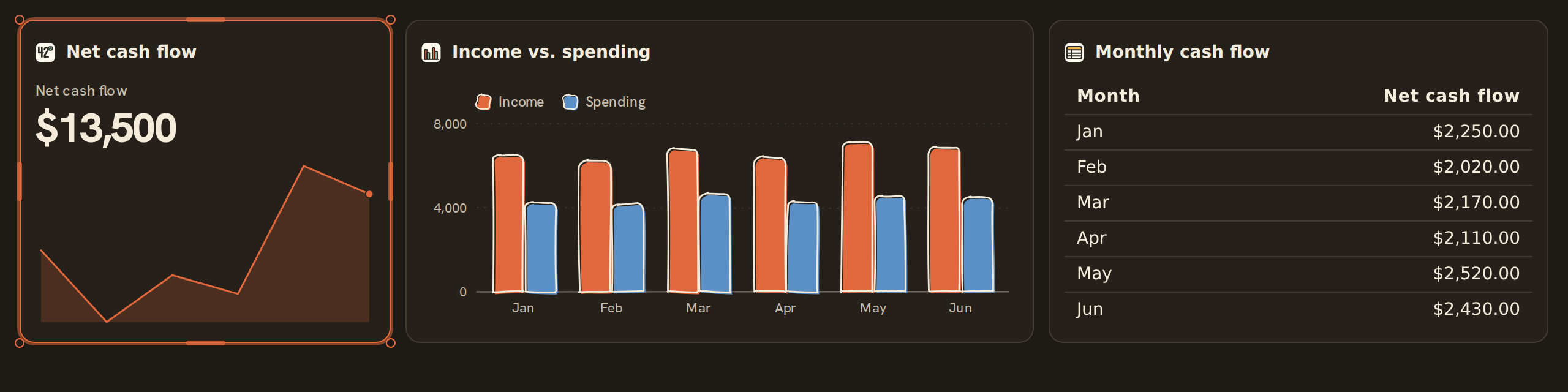

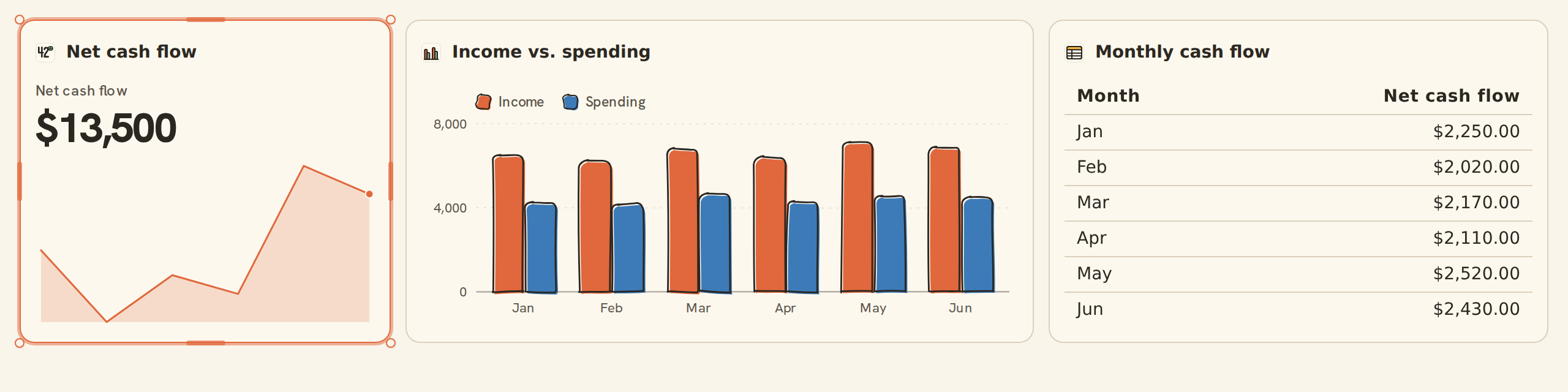

A combo chart, a stat grid, a section divider, and a tabs container all sit on this same 12-column grid alongside ordinary charts and KPIs, so you place, resize, and arrange them exactly like any other cell.

Combo chart: overlay measures on one chart#

A combo chart (the Layered chart card in the library) draws more than one kind of mark on the same horizontal axis. The classic example is revenue bars with a margin-percent trend line on top, where the two series use different scales. Instead of inventing a separate "bar-plus-line" chart kind, BankSync layers the marks: each layer is one mark (a line, bar, area, or scatter) plotted against a shared x axis.

How layers work#

• One shared x axis. Every layer is drawn against the same x field (for example, Month). You pick the x field once.
• Each layer plots its own measures. A layer carries one or more Y measures, and can have its own grouping (split into series) and color.
• Marks can mix. A bar layer and a line layer can sit on the same chart, so you get columns plus a trend line in one view.

Two y scales: shared or independent#

The most useful combo trick is putting two measures that live on different scales onto one chart, like dollars and percentages. Layered charts are the only charts that draw a second, right-hand axis, and only when you ask for one. That is controlled by the y-scale setting:

Each Y measure is tagged as primary or secondary. With the independent setting, primary measures share the left axis and secondary measures share the right axis, so a small percentage and a large dollar figure each get a readable scale.

Worked example: revenue bars and a margin-percent line#

This is the canonical combo. With your data grouped by month:

1. Set the shared x axis to Month.
2. Add a bar layer plotting Revenue, assigned to the primary axis.
3. Add a line layer plotting Margin %, assigned to the secondary axis, with smoothing on.
4. Set the y scale to Independent.

You now read revenue as columns against the left axis and the margin trend as a smooth line against the right axis, in one chart.

The finished chart reads as revenue columns against the left axis with a smoothed margin-percent line tracking against the right axis, both in a single view.

Stat grid: several KPIs in one block#

A stat grid is a tidy row or grid of KPI cards built from one query result. Where a single KPI shows one headline number, a stat grid shows several side by side: think "this month's income, expenses, net, and savings rate" as four cards in one widget rather than four separate widgets you have to line up by hand.

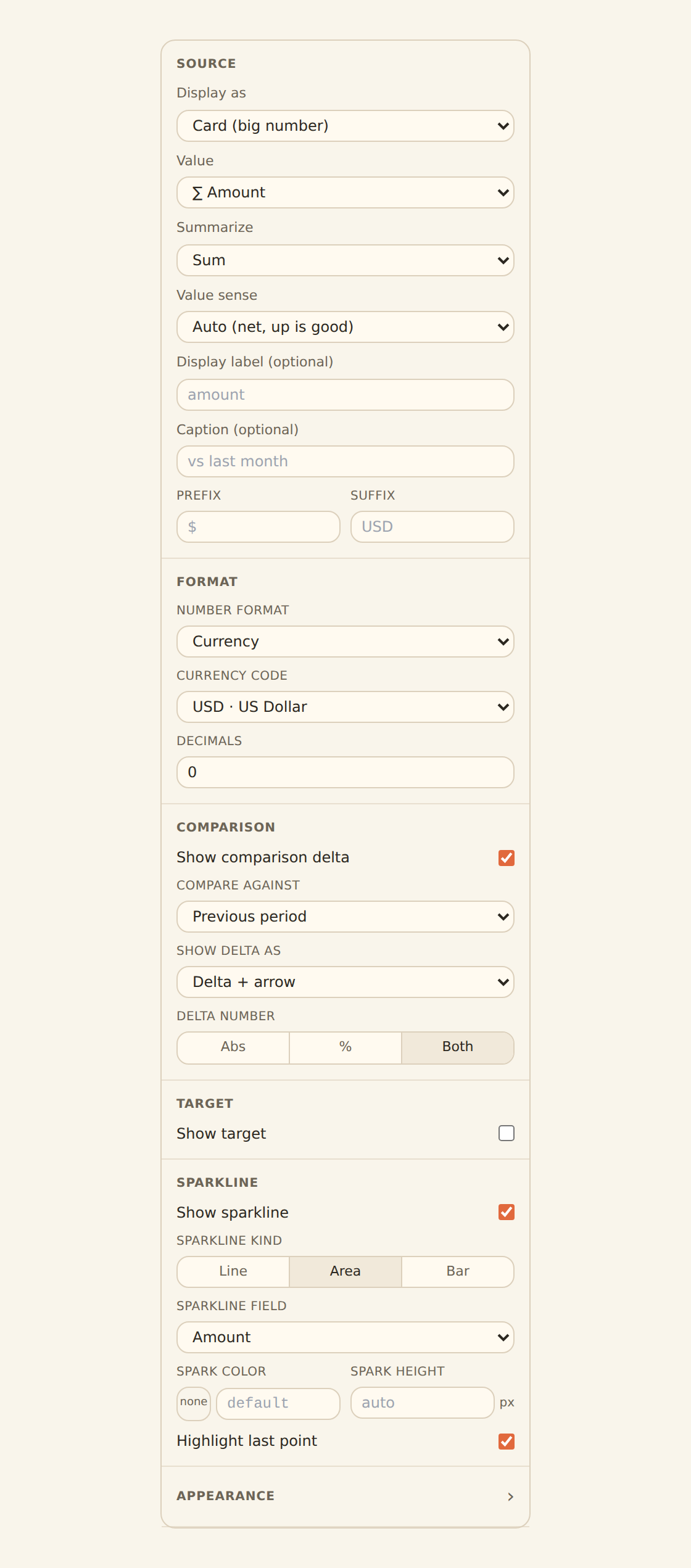

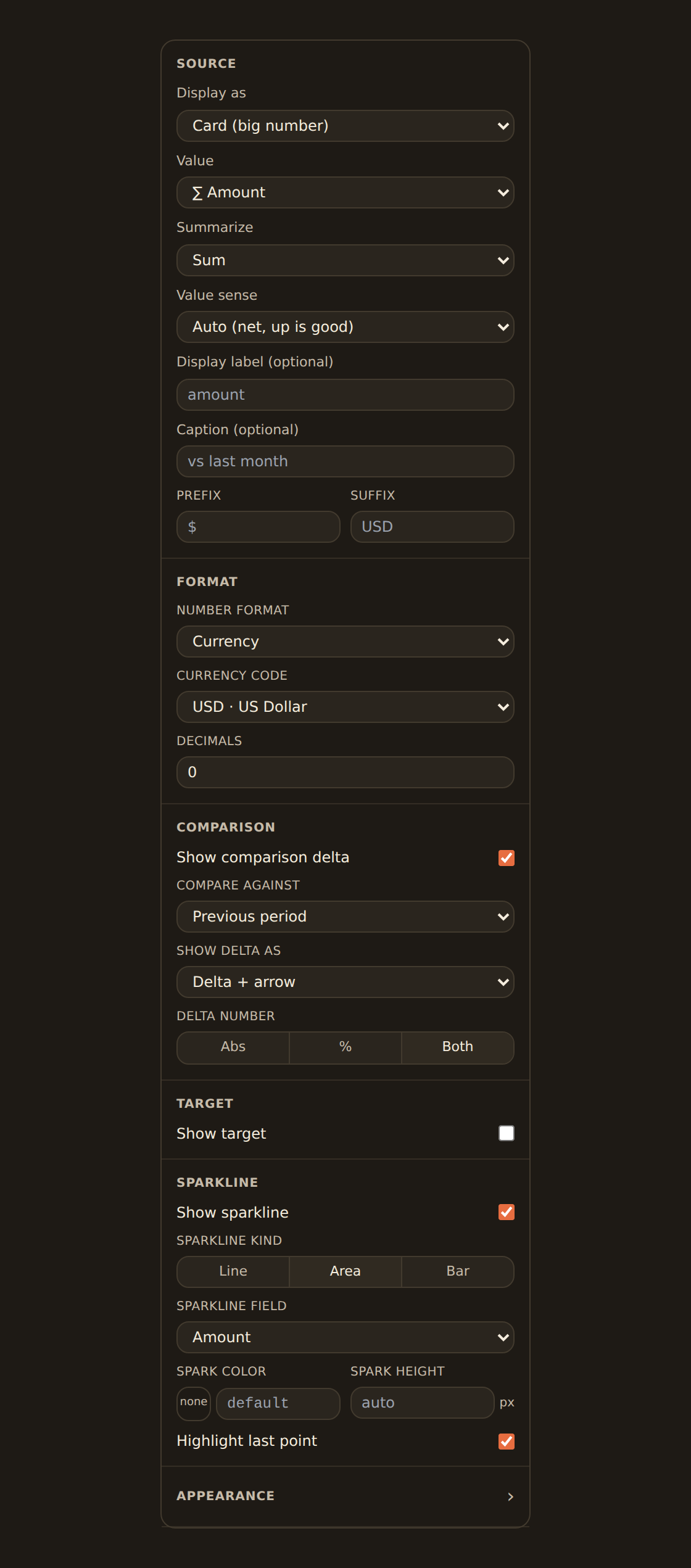

• Each cell is a KPI. Every metric in the grid carries the same controls a standalone KPI has: a value, a summary, a comparison delta, a sparkline, formatting, and so on. (See KPI, table & gauge widgets for those controls.)

• The grid handles the layout. Set the number of columns (or let it flow automatically), the gap between cells, and whether to draw dividers between cells. A shared variant (card, plain, outlined) and density apply to every cell unless a cell overrides it, and you can add a title above the whole grid.

Once rendering ships, a stat grid reads as a single block of evenly spaced KPI cards, for example a four-up row showing income, expenses, net, and savings rate together.

Divider: line, space, or section header#

A divider adds visual structure to a dashboard without showing any data. It is the simplest composition widget and renders immediately. It has three sub-kinds you switch between in its inspector:

Switching the sub-kind only shows the controls that apply to it, so the Header controls appear only when the sub-kind is Header, and so on. A divider spans the full width of the dashboard, which makes it ideal for breaking a long dashboard into labelled sections.

In the divider inspector you pick the sub-kind first, and the panel then shows only that sub-kind's controls: choosing Header, for example, reveals the text, alignment, font-size, weight, and color fields.

Tabs: more than one view in one area#

A tabs widget is a container that groups other widgets behind a tab strip, so one area of the dashboard can hold several views the reader switches between. Use it when you have, say, a "By month" chart and a "By category" chart that answer related questions but you do not want both on screen at once.

Building a tabs widget#

You configure the tabs themselves in the tabs inspector:

Putting widgets into a tab#

The tab inspector sets up the tabs; which widgets live in each tab is decided on the canvas, by dragging widgets into the active tab rather than in the inspector. A tab simply references the widgets assigned to it, so the same widget is never duplicated.

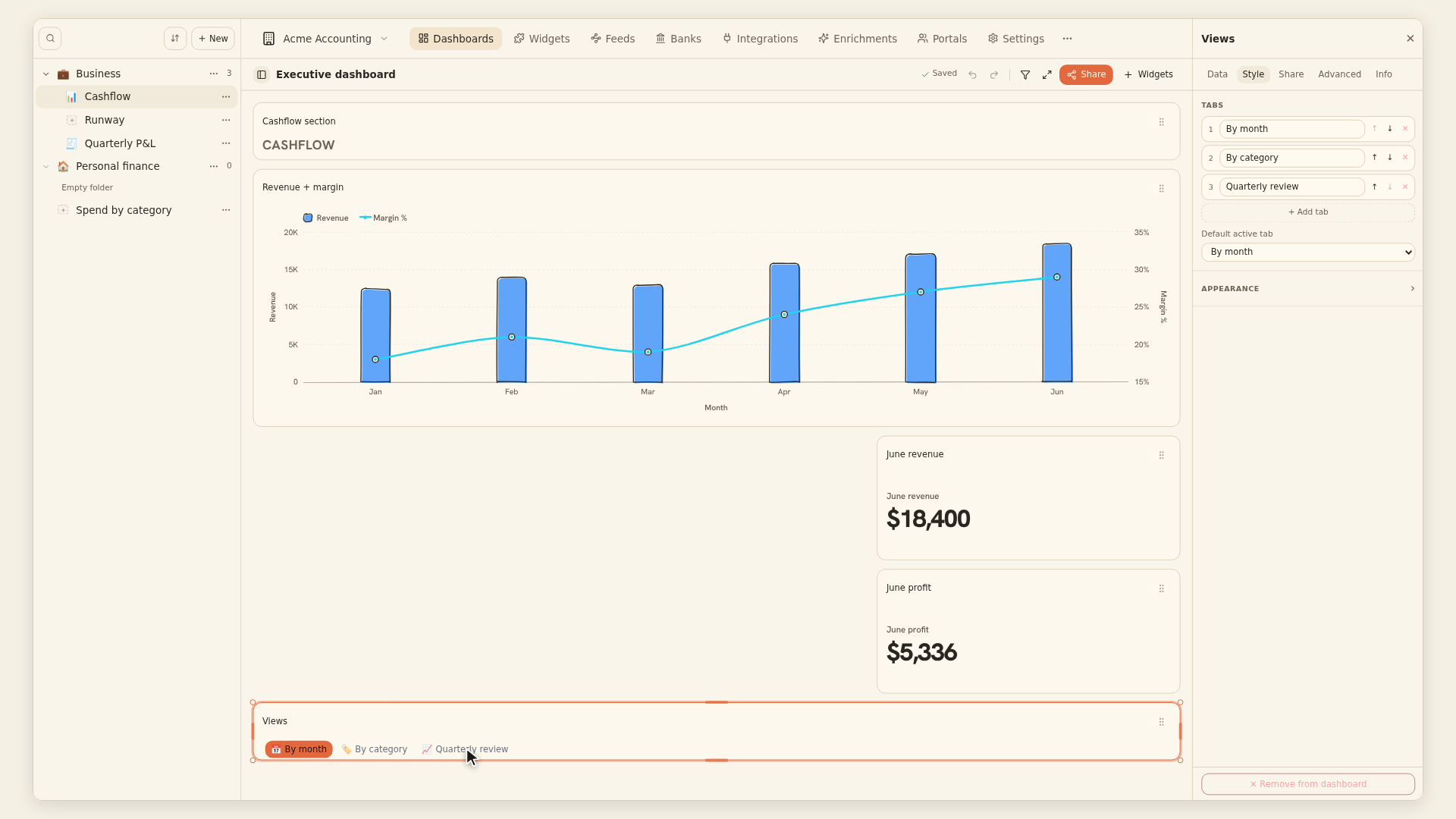

On the canvas a configured tabs widget shows its interactive strip (for example three pill-style tabs, one carrying a count badge) above a content area that, for now, displays the "Drop widgets into this tab from the canvas" prompt.

Style any widget: the Style tab#

Every widget, composition or not, has a Style tab in its inspector. From top to bottom:

The Card section sets how the widget's card looks:

• Show description: shows the widget's description as a one-line subtitle under the title (hover to read all of it). Add the description on the Info tab first. Turn it off to keep the description without showing it.
• Show icon: the small icon beside the title: the one you picked, or else the kind's own drawn icon. KPIs hide it by default; other widgets show it.
• Accent colour: a hex color that replaces the first palette color for this widget. Clear goes back to the palette.
• Surface: Card (the plain card), Tinted (a light wash of the accent color), or Clear (no fill; sits on the page).
• Padding: Roomy, Tight, or None. Until you pick one, it follows the dashboard's Density; Follow dashboard density resets it.
• Title alignment: Left or Centre.
• Drawing style (charts only): Dashboard follows the dashboard's style; Clean, Sketch, or Doodle overrides it for this chart. See Theming.

Size changes from the steppers go on the undo stack like a drag, and a locked widget cannot be resized until it is unlocked.

Phones, tablets, and wide screens#

You always build a dashboard on a 12-column grid. When someone views it, the grid follows the width of the dashboard itself (not the whole browser window), so a dashboard in a narrow pane or beside an open panel reflows too:

The tablet and phone layouts are worked out from your 12-column layout each time; they are never saved separately, so there is only one layout to maintain. Editing always happens on the 12-column grid. On a phone the dashboard opens for reading; the only editing there is finishing the setup of a widget that has no data yet.

Heights on a phone#

A height that suits a wide card is often wrong on a phone, so each kind gets a phone height of its own:

To change this for one widget, set Phone height (rows) in its On phones section (1 to 12). Automatic goes back to the default, and the hint shows what that default is for the kind. To leave a widget off phones altogether, turn off Show on phones. It still shows on tablets and desktop. Some native BankSync widgets grow to fit their content on phones; for those the section says so instead of offering a height.

What a widget shows when it has nothing to draw#

A widget always says what state it is in, so a failure never looks like an empty result:

On a very short widget the same states collapse to a single line, so a one-row KPI still reads cleanly. See Troubleshooting for how to clear each one.

Which one do I reach for?#

Related guides#

• Dashboards & widgets overview: how the canvas, library, inspector, and filters fit together.
• Adding widgets: the everyday ways to put a widget on the canvas.
• Binding data: the Group by, Value, and series controls a combo chart's layers share with every chart.
• The chart kind catalog: the single-mark chart kinds a combo overlays.
• KPI, table & gauge widgets: the KPI controls each stat-grid cell reuses.
• Theming: the dashboard-wide drawing style, palette, density, and frame that each widget's Style tab can override.
• Dashboard templates: templates are the easiest way to get a combo, stat grid, or tabs onto a dashboard today.
